Diligateups’ iBlock Beidou BR-IT5.0 Rack-Mounted Modular Data Center Product

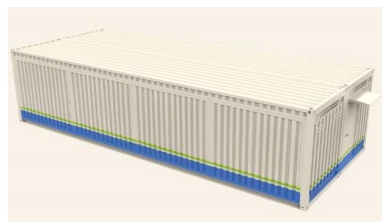

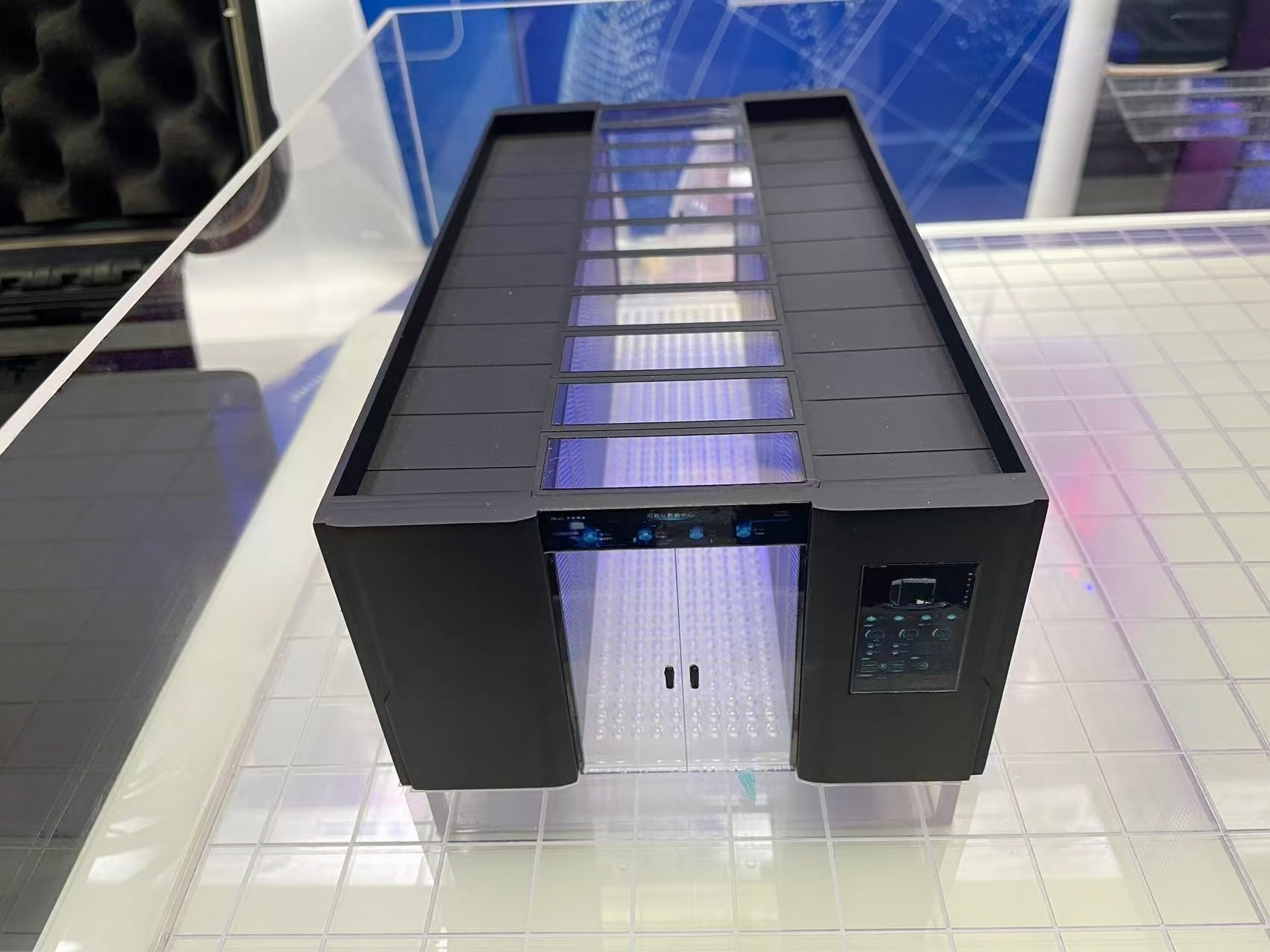

Diligateups has standardized the naming of its modular data centers under the iBlock Series, which currently includes four types: iBlock BR (iBlock Rack, a rack-mounted modular data center), iBlock BL (iBlock Line, a row-level modular data center), iBlock BM (iBlock Module, a dual-row modular data center), and iBlock BC (iBlock Container, a container-based modular data center).

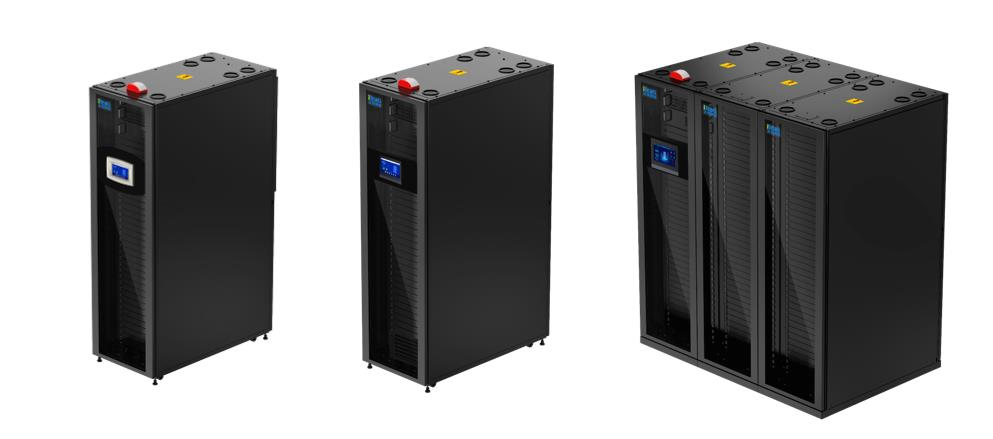

Beidou Series BR Rack-Mounted Modular Data Center

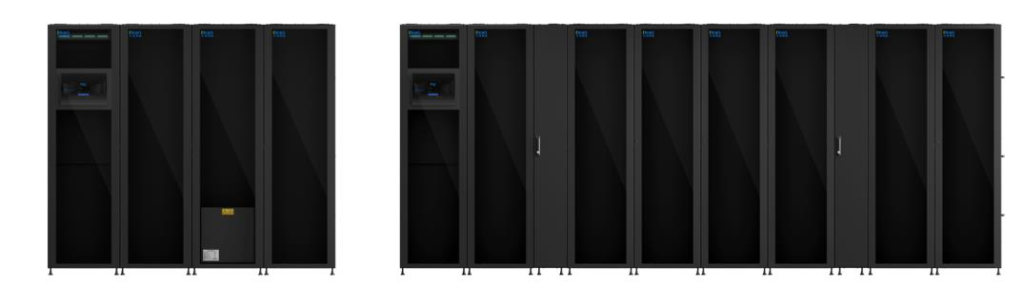

Beidou Series BL-Class Modular Data Centers

Each type of BeiDou iBlock comprises seven major subsystems: the carrier and channel enclosure system, the uninterruptible power supply system, the power distribution system, the environmental management system, the security management system, the monitoring and management system, and the lighting and visualization system. Just as BeiDou consists of seven satellites, this is one of the meanings behind the “BeiDou” series name.

Among these, the Beidou BR-IT 5.0 rack-mounted modular data center integrates all seven major systems into a single rack. Its primary subsystems—including a plug-in power distribution unit and a space-saving air conditioning design—not only blend seamlessly with the rack structure but also facilitate installation and maintenance, allowing for rapid deployment of your data center. As a leading example of micro-data center commercialization, it significantly accelerates data center construction and offers true plug-and-play functionality.

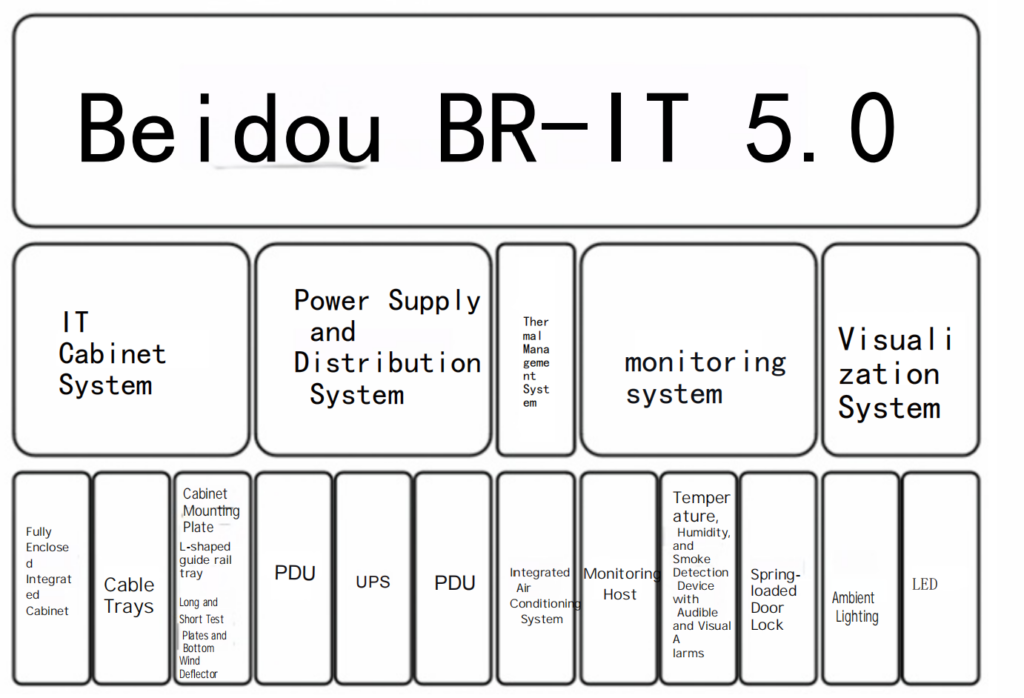

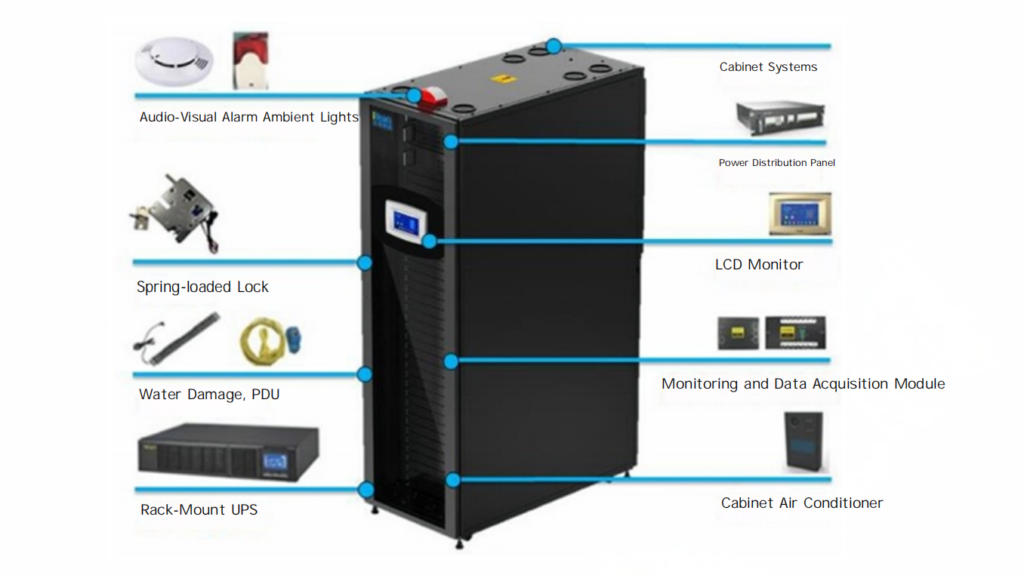

System Architecture

Component

The Beidou BR-IT5.0 rack-mounted modular data center is a fully enclosed hot- and cold-aisle data center that can operate as a self-contained unit

unaffected by room temperature. Compared to traditional micro-data centers, it offers the following advantages:

● High Integration—The data center integrates seven major subsystems, providing stable and reliable conditions for the

long-term, uninterrupted operation of IT equipment within a single standard rack

● Environmentally Friendly and Energy-Efficient — The cabinet-style data center employs high-efficiency integrated air conditioning, high-efficiency UPS systems, and

fully enclosed hot and cold aisles, resulting in a PUE (Power Usage Effectiveness) value significantly lower than

that of traditional data centers, effectively reducing operating costs.

● Rapid Deployment—Cabinet-based data centers are prefabricated in the factory, have few installation restrictions, and do not

require a dedicated server room; they support both concrete floors and anti-static flooring. They are ready for use after

simple on-site installation, offering customers a quick and hassle-free “move-in-ready” solution.

● Safe and Reliable—Micro-module cabinets feature high load-bearing capacity and seismic resistance, and the fully enclosed micro-module solution

protection against moisture, dust, and foreign objects. System alerts trigger red ambient lighting; high-temperature alerts within the module

trigger the cabinet door to pop open along with audible and visual alarms; smoke detection, water leakage, and other alerts trigger local audible and visual alarms. Additionally, optional components such as

fire alarm panels and SMS alerts are available, ensuring worry-free and safe equipment operation.

● Intelligent Management—Equipped with a 7-inch display, the intelligent monitoring platform enables continuous monitoring of in-cabinet equipment such as air conditioning,

UPS, power distribution, temperature and humidity, smoke detectors, and door status. Support for both local and remote monitoring makes data center management more convenient.

iBlock Beidou BR-IT5.0 Rack-Mounted Modular Data Center Applications

 Three-in-one power stations

 Financial branches, chain store locations, and small-to-medium-sized data centers for enterprises and public institutions

• Edge computing data centers

• Locations without dedicated server room areas, such as warehouses and service halls

• Other indoor locations requiring rapid deployment of small-scale server rooms

• Outdoor locations with limited space for equipment installation

Customer Value of the iBlock Beidou BR-IT5.0 Rack-Mounted Modular Data Center

 Rapid Deployment & Simplified Construction

Featuring a fully enclosed design, all subsystems are pre-assembled at the factory and assembled on-site using a building-block approach, shortening the construction cycle

to just a few days and significantly reducing time and labor costs.

It can be deployed directly on standard floors or within building spaces, reducing reliance on traditional data center fit-outs and raised floors,

making it particularly suitable for edge nodes, branch offices, and similar scenarios.

• High Efficiency & Cost Optimization

Featuring a fully enclosed hot/cold aisle design, high-efficiency integrated cabinet air conditioning, and high-efficiency UPS, it achieves

overall energy savings of 30%–50% compared to traditional solutions, optimizing operating costs and reducing electricity bills.

• High Reliability & Stability

The spring-loaded door design is linked to the alarm system; when the internal temperature rises, the cabinet door automatically pops open to allow fresh air to

enter, preventing overheating inside the cabinet.

Visual warning ambient lighting—blue for normal operation and red for alarms—makes management more hassle-free.

The fully enclosed cabinet is waterproof, dustproof, and corrosion-resistant, capable of withstanding harsh environments to ensure the stable

operation of IT equipment.

• Simplified & Space-Saving

A single cabinet integrates power distribution, UPS, an all-in-one air conditioner, batteries, and a monitoring and management system, simplifying

data center construction for customers. With a footprint of just 0.72 square meters, it maximizes the use of data center

space.

Intelligent Management & Convenient Operations and Maintenance

Integrated with the iMonitor monitoring and management system, it enables centralized monitoring of environmental and power parameters within the module,

supports remote operations and maintenance as well as intelligent alerts, and lowers the barrier to professional maintenance.

The cabinet’s front door features a glass panel covering a large portion of the surface, allowing for a clear view of the equipment’s operational status inside the cabinet.

It is also equipped with a 7-inch color touchscreen, linked lighting, and ambient lighting alerts, enhancing operational efficiency and the user experience.

Features of the iBlock Beidou BR-IT5.0 Rack-Mounted Modular Data Center:

 Comprehensive Functionality:

The Beidou BR-IT5.0 integrates a load-bearing and channel enclosure system, an uninterruptible power supply (UPS) system, a power distribution system, an environmental management system, a security management system, a monitoring and management system, and lighting and visualization systems within a single rack, making each rack a fully functional data center.

 Easy to Deploy:

The Beidou BR-IT5.0 features a fully enclosed design that eliminates the need for a dedicated server room. The entire process—from procurement and installation to commissioning—can be completed within a few days. This approach revolutionizes the traditional data center construction method, which requires design, renovation, equipment selection, and coordination of equipment delivery and installation. Building a data center with the BR-IT5.0 saves time, effort, and money.

• Easy to Scale:

When a customer’s business grows and the existing BR-IT5.0 becomes insufficient, they can purchase additional BR-IT5.0 units. These can be placed side-by-side with existing cabinets and connected using cabinet-linking components to integrate the cold and hot aisles across multiple cabinets, forming a data center composed of multiple cabinets.

• Space-saving:

The Beidou BR-IT5.0 features an integrated indoor/outdoor air conditioning design, with the unit installed in the rear space of the cabinet. There is no need to consider an installation location for the outdoor unit, making it suitable for environments with limited outdoor installation space. With no refrigerant piping required and no need for startup commissioning, the BR-IT5.0 reduces deployment and installation time.

• Energy Efficiency and Environmental Protection:

The air conditioning units use environmentally friendly refrigerants; high-efficiency UPS systems achieve up to 92% efficiency; the fully enclosed design eliminates the need for ambient cooling, and close-proximity cooling reduces fan energy consumption. The integrated air conditioning system, combined with optional cooling enhancement components, optimizes airflow management.

• High Protection:

The Beidou BR-IT5.0 features a fully enclosed cabinet that provides excellent dust protection, making it suitable for use in relatively harsh environments such as simple building electrical rooms, warehouses, and general industrial facilities.

• User-Friendly Design:

The Beidou BR-IT5.0 features user-friendly configurations such as a glass door covering a large proportion of the front panel, auxiliary lighting that activates based on door status, status-responsive ambient lighting, and a large 7-inch touchscreen, all of which provide a superior user experience.
