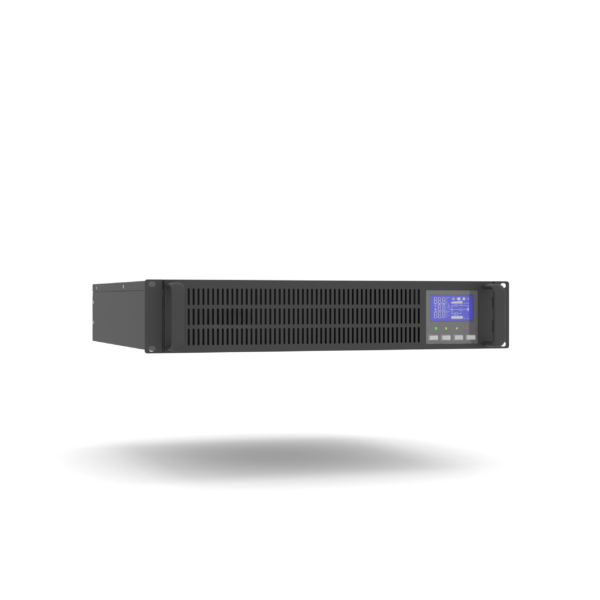

1–10 kVA UPS, Single-Phase Three-Wire — High-Frequency Rack-Mount Power Supply Series

Price range: ¥4,495.00 through ¥21,085.00

Category	Parameter	1KVA	2kVA	3kVA	6kVA	10kVA
Input	Wiring Configuration	Single-phase three-wire				Single-phase three-wire
	Rated Input Voltage	208/220/230/240VAC	208/220/230/240VAC	208/220/230/240VAC	208/220/230/240VAC	208/220/230/240VAC
	Input Voltage Range	110~300VAC	110~300VAC	110~300VAC	110~300VAC	110~300VAC
	Input Frequency Range	50/60Hz±6Hz	50/60Hz±6Hz	50/60Hz±6Hz	50/60Hz±6Hz	50/60Hz±6Hz
	Input Power Factor	≥0.99	≥0.99	≥0.99	≥0.99	≥0.99
	Input Current Harmonic	≤4% (100% non-linear load); ≤5% (50% non-linear load)	≤4% (100% non-linear load); ≤5% (50% non-linear load)	≤4% (100% non-linear load); ≤5% (50% non-linear load)	≤4% (100% non-linear load); ≤5% (50% non-linear load)	≤4% (100% non-linear load); ≤5% (50% non-linear load)
Output	Wiring Configuration	Single-phase three-wire	Single-phase three-wire	Single-phase three-wire	Single-phase three-wire	Single-phase three-wire
	Rated Output Voltage	208/220/230/240VAC	208/220/230/240VAC	208/220/230/240VAC	208/220/230/240VAC	208/220/230/240VAC
	Output Power Factor	1	1	1	1	1
	Voltage Accuracy	±1%	±1%	±1%	±1%	±1%
	Output Frequency	Online mode: follow mains frequency; Battery mode: (50/60±0.1%)Hz	Online mode: follow mains frequency; Battery mode: (50/60±0.1%)Hz	Online mode: follow mains frequency; Battery mode: (50/60±0.1%)Hz	Online mode: follow mains frequency; Battery mode: (50/60±0.1%)Hz	Online mode: follow mains frequency; Battery mode: (50/60±0.1%)Hz
	Crest Factor	3:1	3:1	3:1	3:1	3:1
	Output Voltage Harmonic	≤3% (resistive load); ≤5% (non-linear load)	≤3% (resistive load); ≤5% (non-linear load)	≤3% (resistive load); ≤5% (non-linear load)	≤3% (resistive load); ≤5% (non-linear load)	≤3% (resistive load); ≤5% (non-linear load)
	Overall Efficiency (Mains Mode)	≥95%	≥95%	≥95%	≥95%	≥95%
	Overall Efficiency (Battery Mode)	≥85%	≥85%	≥85%	≥85%	≥85%
	Overload Capacity	Mains mode: Load ≤110%, last 30min; ≤130%, last 10min; ≤150%, last 30s; >150%, 200ms	Mains mode: Load ≤110%, last 30min; ≤130%, last 10min; ≤150%, last 30s; >150%, 200ms	Mains mode: Load ≤110%, last 30min; ≤130%, last 10min; ≤150%, last 30s; >150%, 200ms	Mains mode: Load ≤110%, last 30min; ≤130%, last 10min; ≤150%, last 30s; >150%, 200ms	Mains mode: Load ≤110%, last 30min; ≤130%, last 10min; ≤150%, last 30s; >150%, 200ms
Battery	Standard Battery Quantity	2	4	6	—	16~20, default 16
	Long-run Model Battery Quantity	3	6	8	—	—
	Charging Current	1A	Default 1A, standard:1~4A, long-run:1~12A adjustable	Default 1A, standard:1~4A, long-run:1~12A adjustable	Default 1A, 1~12A adjustable	Default 1A, 1~12A adjustable
	Switchover Time	Mains to battery: 0ms, Mains to bypass: 0ms	Mains to battery: 0ms, Mains to bypass: 0ms	Mains to battery: 0ms, Mains to bypass: 0ms	Mains to battery: 0ms, Mains to bypass: 0ms	Mains to battery: 0ms, Mains to bypass: 0ms
Environment	Operating Temperature	0℃~40℃	0℃~40℃	0℃~40℃	0℃~40℃	0℃~40℃
	Storage Temperature	-15℃~60℃ (without battery)	-15℃~60℃ (without battery)	-15℃~60℃ (without battery)	-15℃~60℃ (without battery)	-15℃~60℃ (without battery)
	Humidity Range	20~95% (non-condensing)	20~95% (non-condensing)	20~95% (non-condensing)	20~95% (non-condensing)	20~95% (non-condensing)
	Operating Altitude	<1000 meters	<1000 meters	<1000 meters	<1000 meters	<1000 meters
	Noise Level	<45dB	<45dB	<45dB	<45dB	<45dB
Communication	Communication Interfaces	RS232, USB, SNMP (optional), RS485 (optional), Dry Contact (optional), EPO (optional)	RS232, USB, SNMP (optional), RS485 (optional), Dry Contact (optional), EPO (optional)	RS232, USB, SNMP (optional), RS485 (optional), Dry Contact (optional), EPO (optional)	RS232, USB, SNMP (optional), RS485 (optional), Dry Contact (optional), EPO (optional)	RS232, USB, SNMP (optional), RS485 (optional), Dry Contact (optional), EPO (optional)
Dimensions & Weight	Long-run/Standard Size (W×D×H, mm)	43831087	43851087	43851087	43849087	43849087
	Long-run/Standard Net Weight (kg)	5.1 / 9.05	8.1 / 15.98	8.3 / 20.12	8.9	10.7

Capacity

Clear

SKU: N/A Categories: Online Transformer-Less UPS, UPS

Advanced Technology

Double-conversion online UPS with fully digital DSP control
Wide input voltage and frequency ranges to avoid frequently switching to battery power

Comprehensive Protection

Power-on self-test (POST) function, DC startup function
Output overload, output short circuit, inverter over-temperature, battery undervoltage warning, and battery overcharge protection

Intelligent Management

Supports RS232/USB communication; optional SNMP card, Modbus card, or dry contact card
Configurable charging current; automatic, seamless switching between constant-current, constant-voltage, and float charging modes

Weight	N/A
Dimensions	N/A
Capacity	1KVA, 2KVA, 3KVA, 6KVA, 10KVA, 1KVA(2-cell 12V 7AH battery), 2KVA(4-cell 12V 7AH battery), 3KVA(6-cell 12V 7AH battery)

Reviews

There are no reviews yet.

Be the first to review “1–10 kVA UPS, Single-Phase Three-Wire — High-Frequency Rack-Mount Power Supply Series”

1–10 kVA UPS, Single-Phase Three-Wire — High-Frequency Rack-Mount Power Supply Series

Reviews

Related products

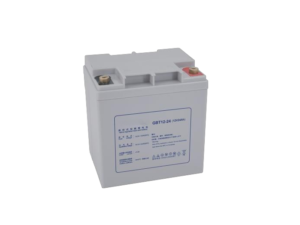

12V24Ah General-Purpose Lead-Acid Batteries

1–10 kVA UPS, Single-Phase Three-Wire — High-Frequency Tower-Style Power Supply Series

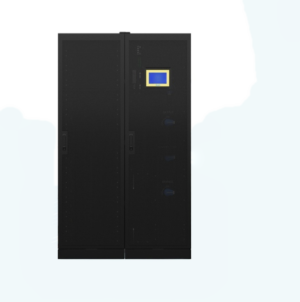

20–800 kVA UPS, 3-phase + neutral + ground — High-Frequency Tower-Type Power Supply Series
