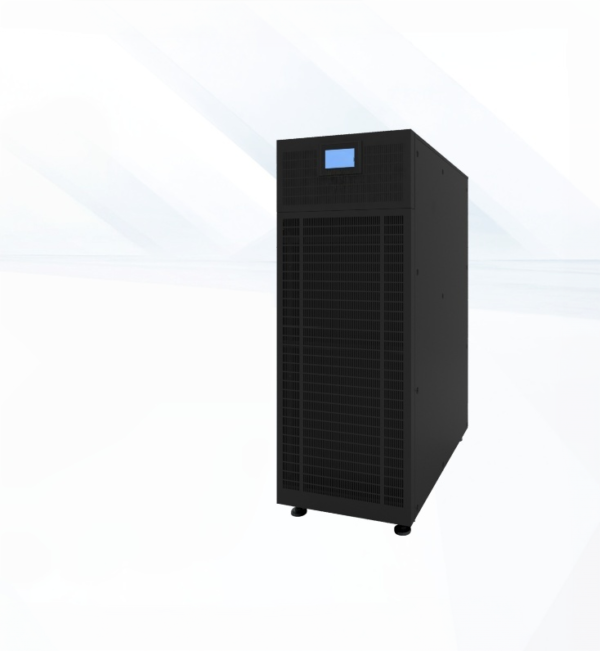

10–200 kVA UPS, Three-Phase Five-Wire — High-Frequency Tower-Type Power Supply Series

Input

• Wiring Mode:Three Phase Five Wire
• Rated Voltage: 380/400/415Vac
• Voltage Range: 138~485Vac
•  Frequency Range: 40Hz~70Hz
• Power Factor: ≥0.99
• Current Harmonic: ≤3% (100% Non-linear Load), ≤5% (50% Non-linear Load)
• Bypass Voltage Range: 220Vac Upper Limit: 25% (Optional +10%, +15%, +20%) 230Vac Upper Limit: 20% (Optional +10%, +15%) 240Vac Upper Limit: 15% (Optional +10%) Lower Limit: -45% (Optional -10%, -20%, -30%)
• Generator Input: Supported

Output

• Wiring Mode: Three Phase Five Wire
• Rated Voltage: 380/400/415Vac
• Power Factor: 0.9
• Voltage Accuracy: ±1%
• Frequency Mains Mode: ±1%/±2%/±4%/±5%±10% Optional; Battery Mode: (50/60±0.1%) Hz
• Current Crest Factor 3:1
• Voltage Harmonic ≤2% (Resistive Load); ≤4% (Non-linear Load)
• Overall Efficiency > 95.0%
• Overload Capacity: 110% Load, transfer to bypass after 60min; 125% Load, transfer to bypass after 10min; 150% Load, transfer to bypass after 1min

Battery

• Battery Voltage ±180V~±300Vdc (30~50 Even Number Cells Optional)
  Charging Current Maximum 5A, Maximum 10A, Maximum 15A, Maximum 20A, Maximum 30A, Maximum 40A
  Transfer Time Mains Mode to Bypass Mode: 0ms (Tracking); Mains Mode to Battery Mode: 0ms

Environment

• Operating Temperature:0°C~40°C
• Storage Temperature: -25°C~55°C
• Humidity Range: 0~95% (Non-condensing)
• Operating Altitude: < 1500m

Functions

• Alarm Functions Overload, Mains Abnormality, UPS Fault, Battery Under-voltage and other alarm functions
• Protection Functions Battery Under-voltage, Output Over/Under-voltage, Short Circuit, Overload, Over-temperature, Fan Fault Alarms
• Communication Interface CAN, RS485, FE, Parallel Card, SNMP Card (Optional)
