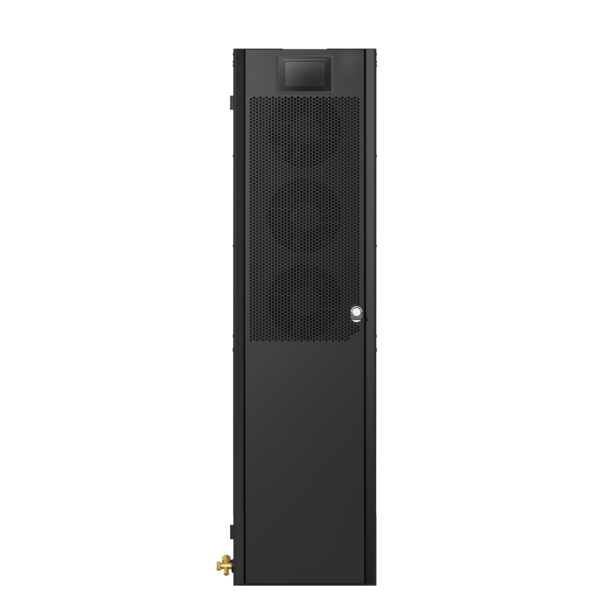

Name: 12.5KW Room Cooling-Fixed-frequency AC, Three-phase, Front-to-top airflow with 7-inch screen - Diligateups
Availability: InStock

12.5KW Room Cooling–Fixed-frequency AC, Three-phase, Front-to-top airflow with 7-inch screen

Item	Parameter
Unit Type	Air-cooled Unit
Air Supply Method	Top-front Air Supply
Circulating Air Volume (m³/h)	3200
Cooling Capacity (kW)	12.5
Unit Energy Efficiency	Level 1 Energy Efficiency
Air Filter	Standard Equipped Washable G3 Filter
Heating Capacity (kW) – Not available for cooling-only type	3
Humidification Capacity (kg/H) – Only for constant temperature & humidity type	3
Unit Power Supply	3-Phase 380V/50Hz 3N~
Cooling-only Type Power Distribution Parameter FLA (A)	14.5
Constant Temperature & Humidity Type Power Distribution Parameter FLA (A)	27.8
Humidifier Water Inlet Pipe Connection	G1/2″
Condensate Drain Pipe Connection (mm)	19
Refrigerant Liquid Pipe (mm)	9.52
Refrigerant Suction Pipe (mm)	12.7
Indoor Unit Net Weight (kg)	118
Indoor Unit Dimension WDH (mm)	600×520×1850
Outdoor Unit	——
Outdoor Unit Model	ACS16-A
Outdoor Unit Net Weight (kg)	45
Outdoor Unit Dimension (Excluding Outdoor Support Legs) WDH (mm)	700×350×1200

Type

Clear

Energy Efficiency and Environmental Protection

The unit’s annual energy efficiency ratio far exceeds Class 1 standards, ensuring high efficiency and energy savings
Electronic expansion valve for more precise regulation
Environmentally friendly R410A refrigerant

Easy to operate

7-inch colour touchscreen with graphical display and user-friendly interface · Automatic start-up upon power-up; RS485 communication interface as standard
Phase sequence detection, warning and alarm functions to prevent compressor burnout caused by reversed phase sequence
Fully front-accessible maintenance; filters can be rinsed directly

Highly adaptable

With a metal housing and metal blades on both the indoor and outdoor fans, the unit is robust and reliable, designed for uninterrupted 24/7 operation throughout the year.
The far-infrared humidification system offers rapid humidification and is highly adaptable to different water qualities, complying with the national CCC mandatory certification.
It is capable of operating in ambient temperatures ranging from -15 to 45 °C outdoors; when fitted with a low-temperature unit, it can operate in ambient temperatures ranging from -35 to 45 °C.

Type	Constant temperature and humidity, Single-cooling, Constant Temperature and Humidity – Low-Temperature, Single-cooling – low temperature
