What is the Rack-mounted UPS

The “Power Bodyguard” in Your Rack: A Guide to Rack-Mounted UPS, Plus the Taihang UR Series

Picture this: at 2 a.m., a bank branch’s core switch loses power mid-transaction. Or a hospital scanner goes dark halfway through a scan. Behind every one of these horror stories, the real culprit is simple — electricity. And the hero that turns them into “false alarms” is a rack-mounted UPS.

一、What Exactly Is a Rack-Mounted UPS?

A UPS (Uninterruptible Power Supply) sits between the grid and your equipment. Meanwhile, it stands guard silently. When the grid fails, it takes over instantly — so smoothly that your servers never notice.

A rack-mounted UPS is simply a UPS built to standard 19-inch rack dimensions. In essence, it shares the same circuit design as a tower UPS; the difference lies mainly in “housing”:

• Tower UPS: stands on the floor or desk; fits scattered equipment without a cabinet;
• Rack-mounted UPS: slides onto rack rails, lives alongside your servers, saves space, keeps cabling tidy, and simplifies maintenance — the default choice for IDCs, branch offices, and network cabinets.

In short: with a standard cabinet, choose rack-mounted; without one, a tower unit saves you trouble.

二、Why “Online Double Conversion” Wins

UPS technology comes in three generations. Here’s a quick analogy:

Offline (standby): like a backup driver — idle during normal power, then takes over in 2–10ms;

Line-interactive: like a part-time translator — trims voltage, but still misses grid flaws;

Online double conversion: like a full-time translator — the AC input is rectified to DC, then inverted back to clean AC. As a result, the output is entirely “rebuilt” power with zero transfer time. Surges, sags, harmonics, and frequency drift are all blocked outside.

For servers, medical devices, and industrial controls, even a 2–10ms gap can trigger reboots or data loss. Therefore, online double conversion is the industry’s consensus for critical loads.

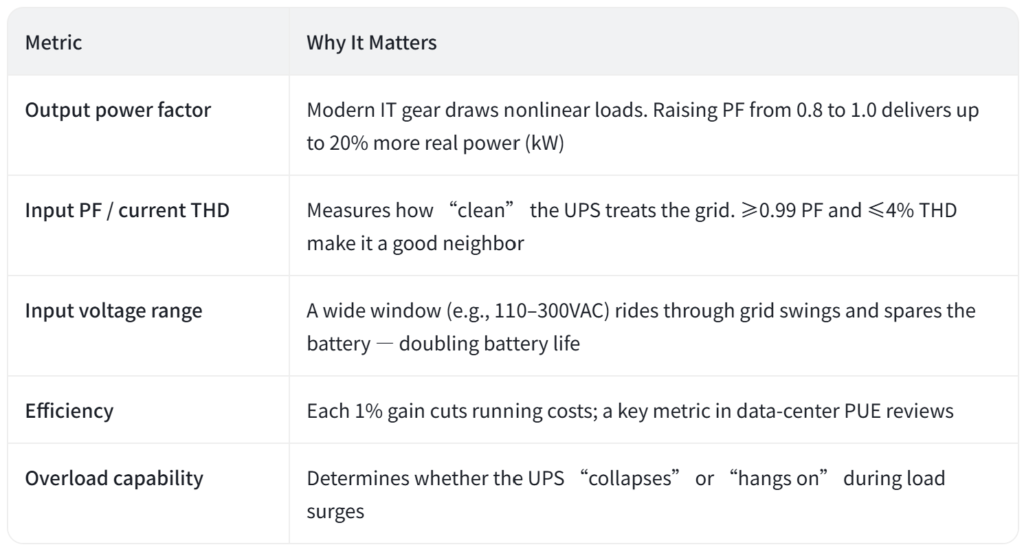

The Specs That Actually Matter

Never judge a rack-mounted UPS by kVA alone. Instead, watch these hard metrics:

Battery and Runtime: Standard vs. Long-Run Model

Rack-mounted UPS units come in two flavors:

• Standard model: built-in batteries; ready out of the box;
• Long-run model: batteries kept external, so runtime extends to hours as needed.
• Runtime math is simple: runtime ≈ battery capacity (Wh) ÷ load (W) × inverter efficiency. First size your load in watts, then choose the battery — never the other way around.三、Diligateups Taihang UR Series

三、Diligateups Taihang UR Series

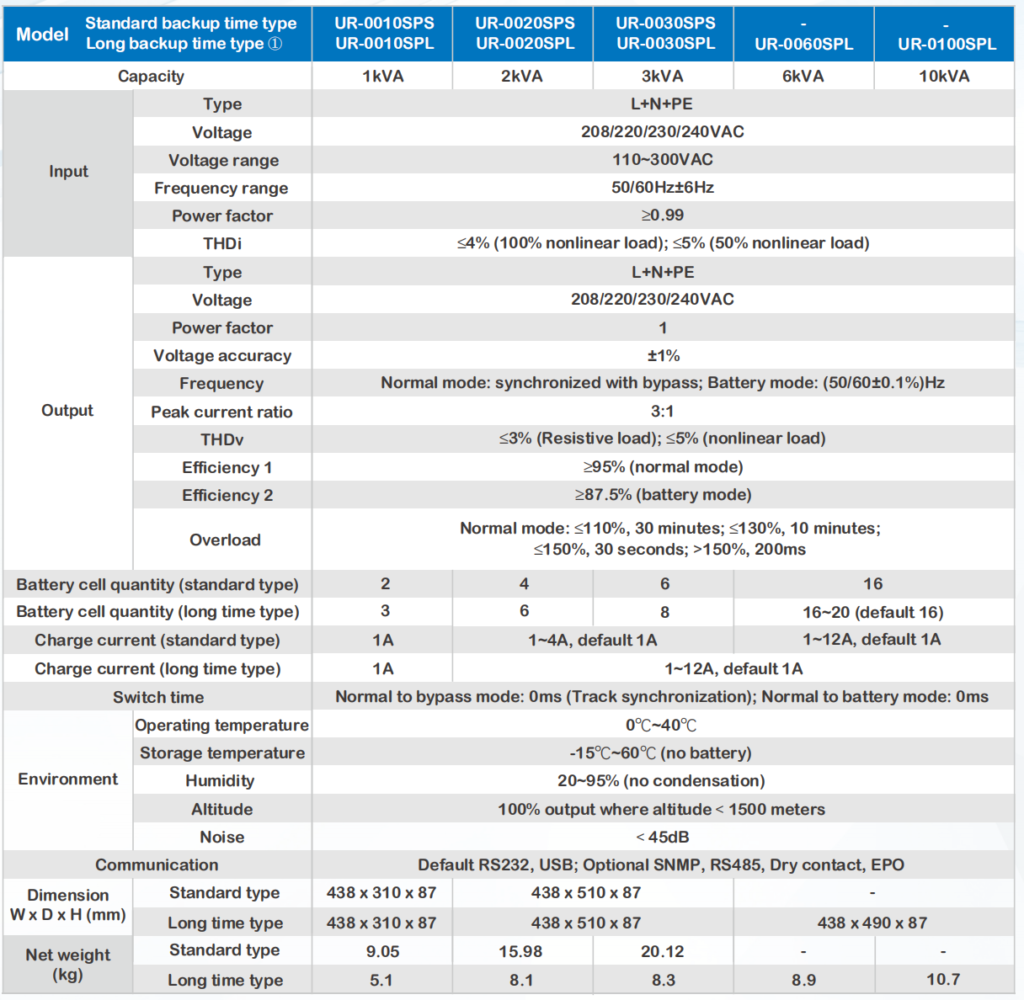

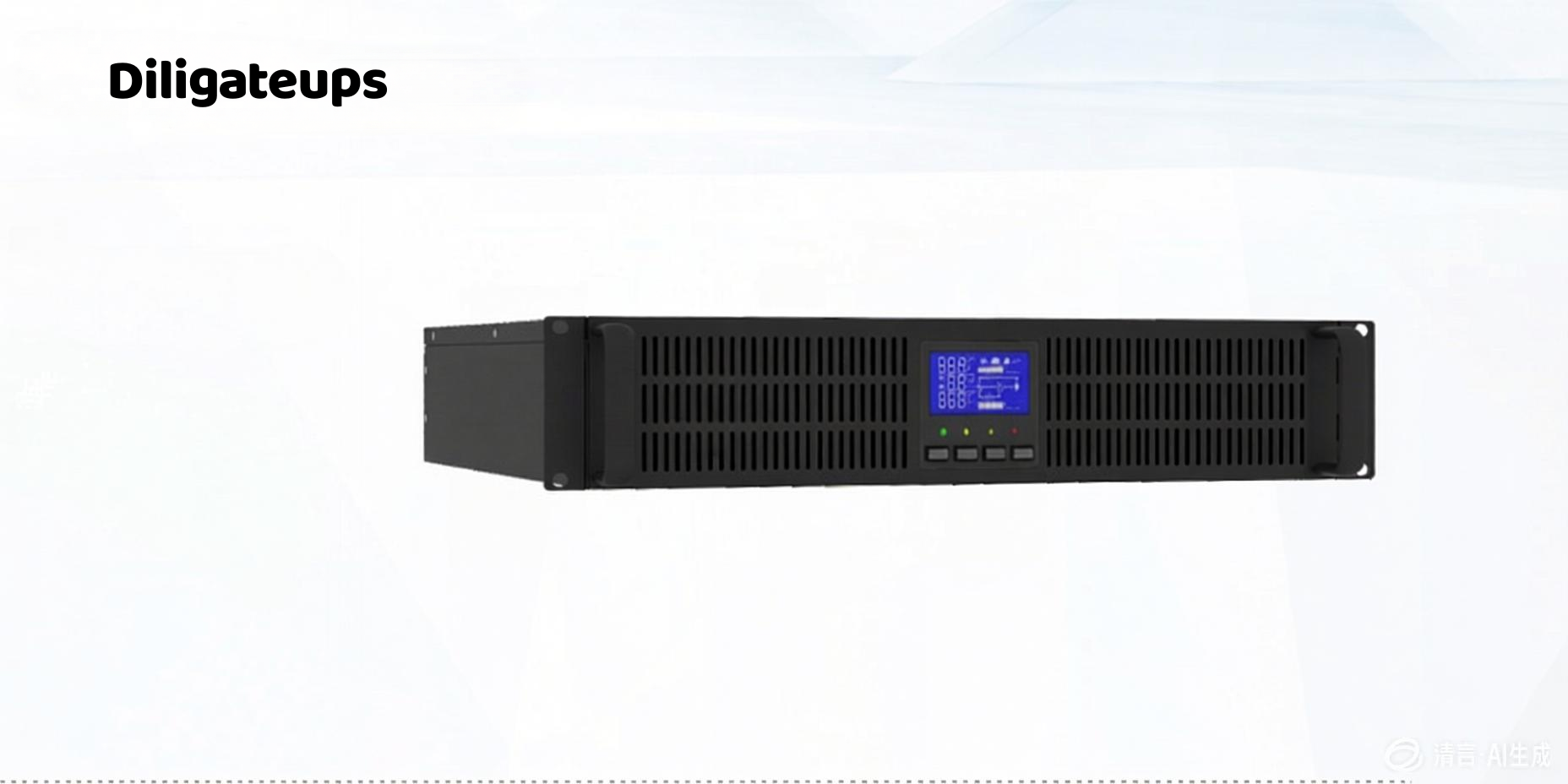

Now that the theory is clear, here is a machine built to pass every test above. The Diligateups Taihang UR series, 1–10kVA high-frequency rack-mounted UPS, runs on online double conversion technology. It offers single-phase input/output, built-in batteries in standard models, and a compact 2U footprint designed for small-capacity critical scenes.

How It Passes the Checklist

Advanced technology. Double-conversion topology plus full DSP control. Moreover, the ultra-wide 110–300VAC input and 50/60Hz±6Hz frequency window ride through unstable grids, cut battery switching, and extend battery life — exactly the “wide input” virtue described earlier.

Complete protection. Self-diagnosis at startup and cold-start on DC. On top of that, it guards against output overload, short circuit, inverter over-temperature, battery low-voltage, and battery overcharge. In online mode, overload response is tiered: ≤110% for 30min, ≤130% for 10min, ≤150% for 30s, then fast bypass within 200ms.

Smart management. RS232 and USB come standard; SNMP, Modbus, dry-contact, and EPO cards are optional. In addition, charging current is adjustable, with smooth auto-switching among constant-current, constant-voltage, and float modes.

四、Who Needs It Most?

• Small data centers of SMEs, enterprise branches, and bank outlets;
• AC power for networks, telecom, and automation systems;
• Clean power for precision instruments.

If you need a quiet, rugged, worry-free guardian for a small rack or branch machine room, the Taihang UR series was practically designed to your blueprint.

Final Word

A rack-mounted UPS has one trait: invisible when healthy, priceless when the grid fails. So don’t wait for a blackout to test your luck — invite a power bodyguard into your cabinet today. For sizing, battery plans, or custom configurations of the Taihang UR series, contact the Diligateups team anytime.
