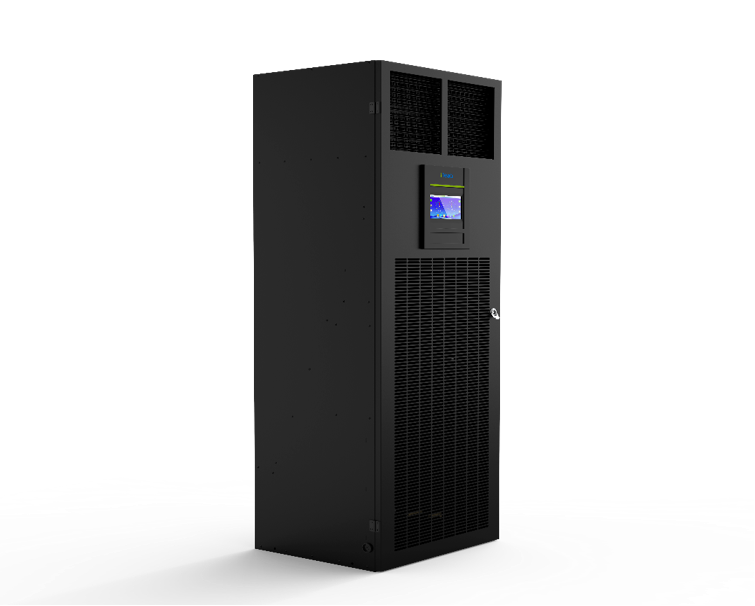

Product Overview
Cooling Capacity: 5.5kW / 8.5kW / 13.5kW / 17.5kW / 22.5kW / 27kW / 32kW
Voltage: 220V / 380V (50Hz/60Hz available)
Unit Type: Cooling-only, Cooling-only + Electric Heater, Precision Air Conditioning (Constant Temperature & Humidity)

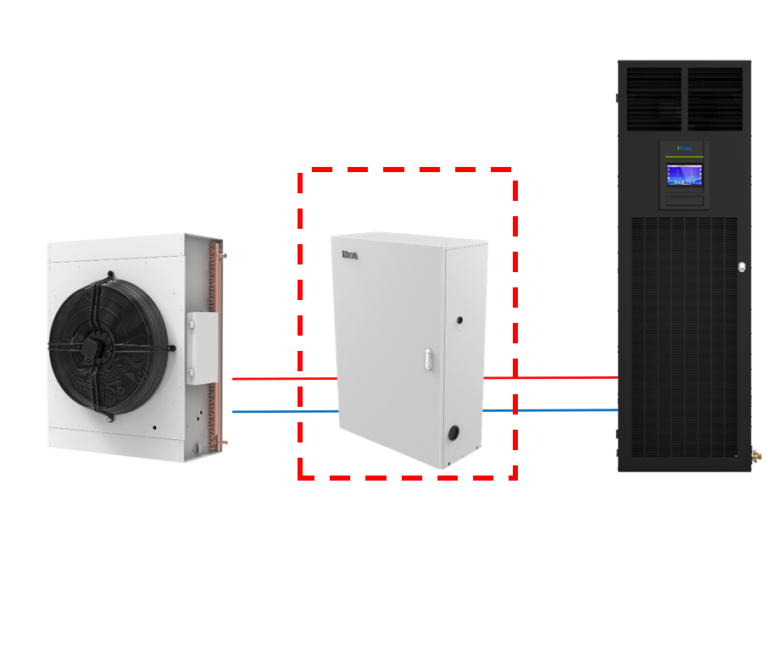

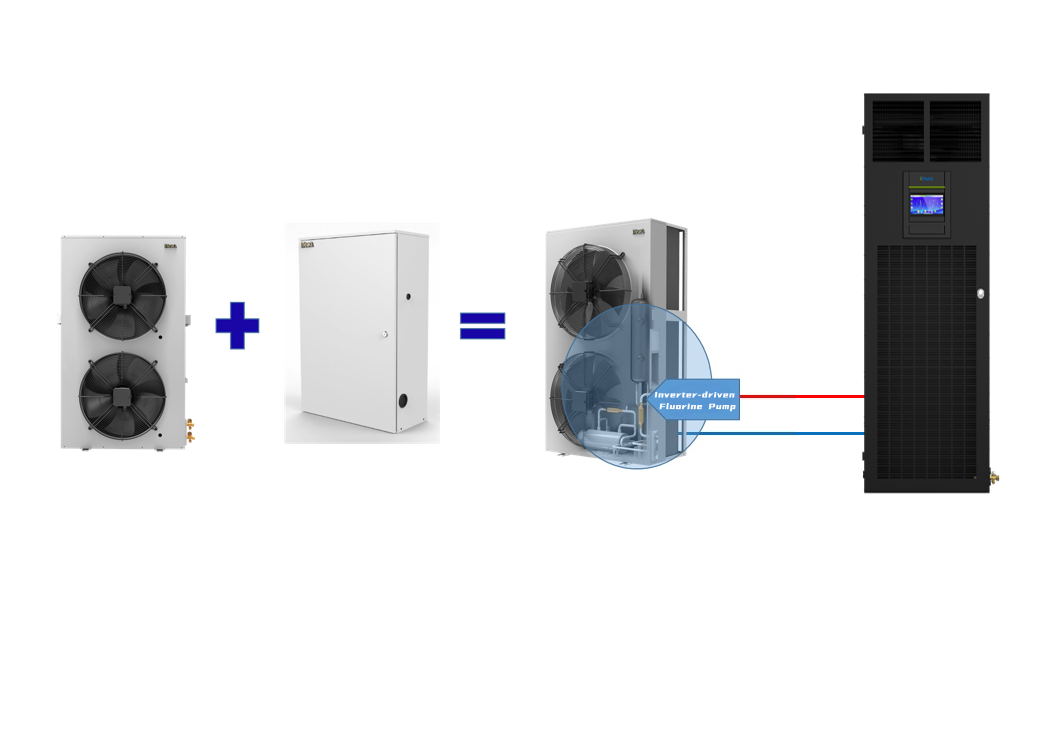

Cooling Mode: Air-Cooled Inverter, Air-Cooled Inverter + Fluoride Pump (Pump-Driven Refrigerant Circulation)
Air Supply Mode: Top Discharge with Air Hood
Applications: Small & Medium-sized Server Rooms, Archives, Rooms without Internal Heat Sources, Outdoor Base Stations, Battery Rooms, Substations, Monitoring Rooms, etc.
Advantages
一、Expansion of the cooling capacity range
Two new models added: 27kW & 32kW
7 cooling capacity options to meet diverse selection needs
The cooling capacity of the unit is increased by 8%~10%.
二、Full Inverter Technology
Variable capacity components equipped as standard across the full range

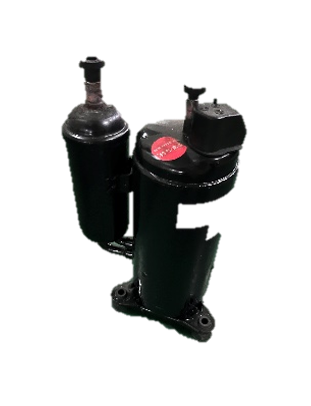

Variable-Frequency Compressor
EC permanent-magnet synchronous motor drive; cooling capacity adjustable from 30% to 100%
On-demand capacity modulation for 30%+ energy savings
30%–100% soft start with low inrush current

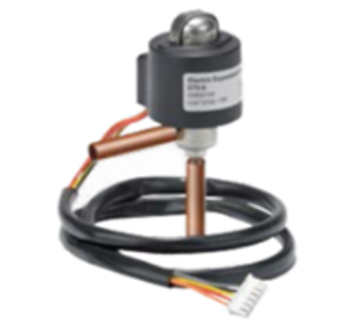

Electronic Expansion Valve
High control precision, accurate refrigeration
Precise control, stable system
Fast response speed, high precision
Precisely matched to the load, significant energy savings

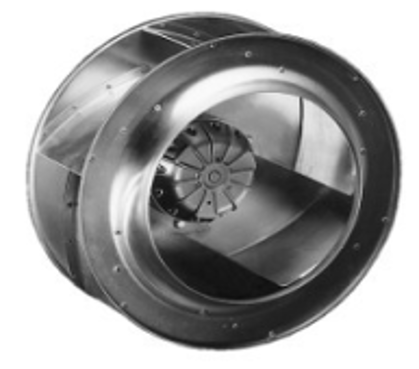

Indoor EC Fan
Soft start from 10% to 100%, low starting current
Driven by EC permanent magnet synchronous motor, remarkable energy savings
Variable air volume supply on demand, saving over 20% energy
Quick-connect power terminals for online hot-swap maintenance

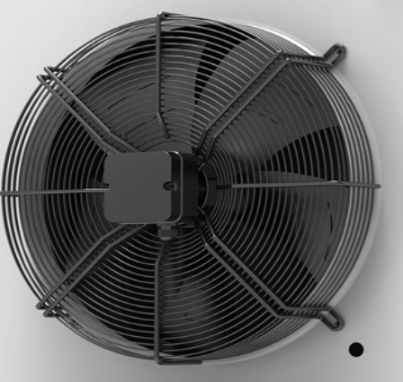

Outdoor Unit
Fan blades made of all-metal material, long service life, resistant to deformation
Stepless speed control for energy saving and low noise
Advantages of Full Inverter Design Unit
Enhanced capacity
Wider operating range, adaptable to variable load conditions
Low-load dehumidification capability, suitable for precise temperature control applications without heat sources
Improved unit reliability, stable operation at low load, reduced noise
Dynamic cooling capacity adjustment

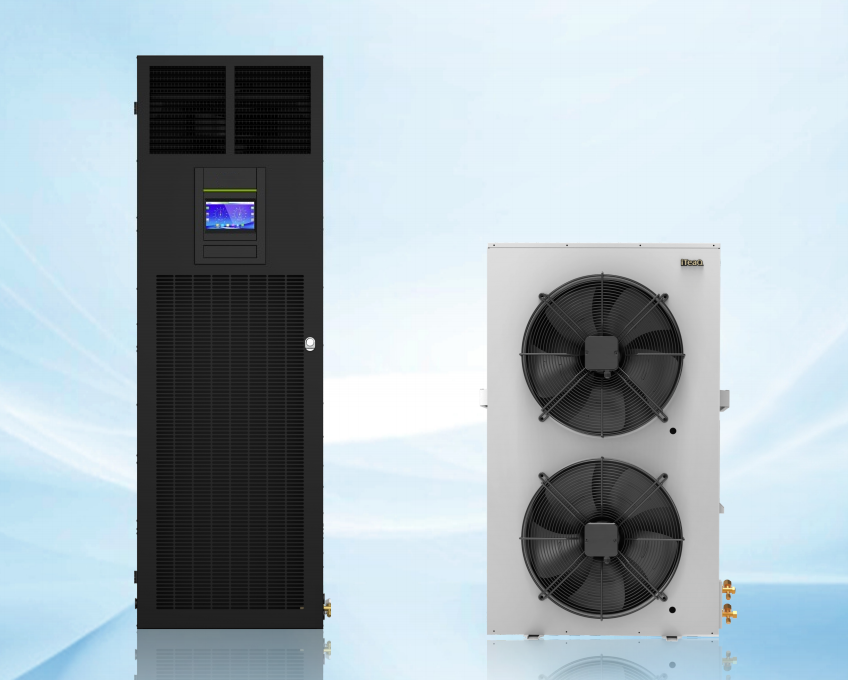

Air-Cooled / Fluorine Pump Full Inverter Precision Air Conditioner
Improved energy efficiency
Higher energy efficiency ratio (EER) at partial load
Stable, precise and fast temperature and humidity control with high temperature accuracy
Precise supplementary cooling when combined with fluorine pump natural cooling
