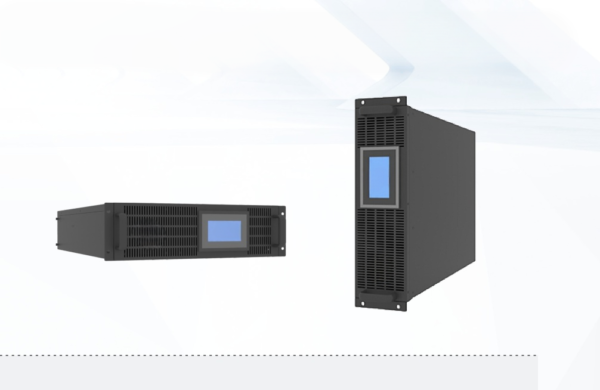

10–40 kVA UPS, Three-Phase Five-Wire — High-Frequency Rack-mount Power Supply Series

Input

• Frequency Range: 40Hz~70Hz
• Power Factor: ≥0.99
• Current Harmonic: ≤3% (100% Non-linear Load); ≤5% (50% Non-linear Load)
• Bypass Voltage Range: 220Vac Upper Limit: 25% (Optional +10%, +15%, +20%) 230Vac; Upper Limit: 20% (Optional +10%, +15%) 240Vac; Upper Limit: 15% (Optional +10%) Lower Limit: -45% (Optional -10%, -20%, -30%)
• Generator Input Supported

Output

• Power Factor: 0.9
• Frequency Mains Mode: ±1%/±2%/±4%/±5%±10%;
• Battery Mode: 50/60±0.1%Hz
• Voltage Harmonic ≤2% (Resistive Load); ≤4% (Non-linear Load)
• Overall Efficiency > 95.0%
• Overload Capacity 110% Load, transfer to bypass after 60min; 125% Load, transfer to bypass after 10min; 150% Load, transfer to bypass after 1min

Battery

• Battery Voltage: ±180V/192V/±204V/±216V/±228V/±240V/±252V/±264V/±276V/±288V/±300Vdc (30/32/34/36/38/40/42/44/46/48/50 Cells Optional)
• Transfer Time Mains Mode to Bypass Mode: 0ms (Tracking); Mains Mode to Battery Mode: 0ms

Environment

• Operating Temperature: 0°C~40°C
• Storage Temperature: -25°C~55°C
• Humidity Range: 0~95% (Non-condensing)
• Operating Altitude: < 1500m
• Noise: < 55dB
• Communication Interface: RS232, RS485, Parallel Card, Dry Contact Card (Optional), SNMP Card (Optional)
